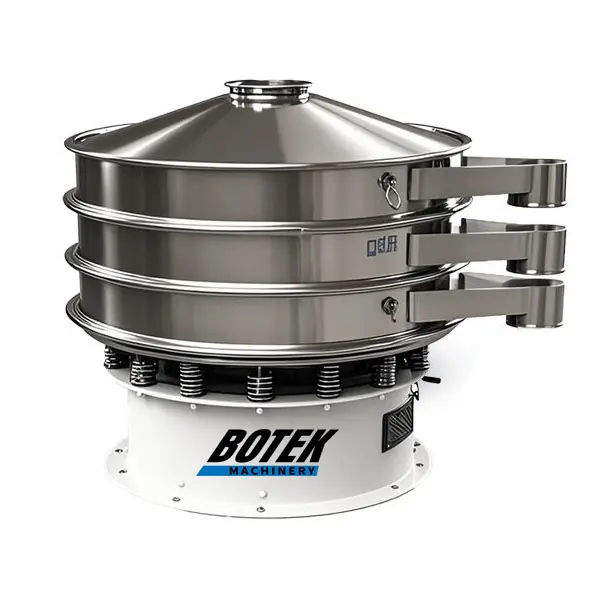

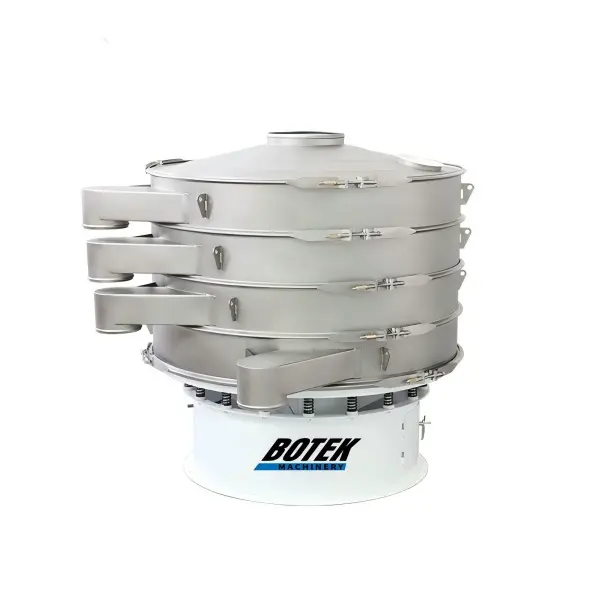

Botek machinery’s Circular vibrating screen utilizes vertical vibration motors to generate powerful circular vibration trajectories through precision-engineered eccentric blocks, providing efficient and accurate screening and classification for various dry and wet materials. Known for its high processing capacity, excellent screening efficiency, and robust construction, this equipment is widely used in mining, sand and gravel, coal, chemical, food, and recycling industries, making it the ideal choice for material classification in your production line.
Options
- Deck Numbers: Single, double, triple, or four-deck classification.
- Construction Materials: Carbon steel, 304 stainless steel, 316L stainless steel.
- Protection Ratings: IP55, IP65 protection, explosion-proof motors available
Cleaning Systems: Ball tray cleaning devices, brush cleaning systems, ultrasonic mesh cleaners. - Discharge Methods: 360° adjustable discharge, centralized discharge, side discharge.
- Control Systems: Variable frequency drive, remote control, intelligent start-stop, overload protection.
Advantages
- High Screening Efficiency: Unique circular vibration trajectory combined with optimal vibration parameters delivers large processing capacity and screening efficiency exceeding 90%.
- Robust and Durable: Welded construction with high-strength steel plates, reinforced at critical points, featuring heavy-duty spherical roller bearings
Easy Maintenance: Vibration exciter connected to screen box with high-strength bolts for easy replacement; centralized lubrication points. - Anti-Blinding Design: Optional anti-blocking devices (ball tray systems, brush cleaners, ultrasonic cleaning systems).
- Environmentally Friendly & Low Noise: Fully sealed structure effectively controls dust emission; operating noise below 85 dB.
- Flexible Customization: Customizable with 1-4 screen decks, adjustable screen inclination to meet different material characteristics.
Data Sheet
| Model | Sieve Diameter(mm) | Sieve area(m²) | Deck(s) | Power(kW) |
| BCV-600 | φ560 | 0.23 | 1-5 | 0.25 |
| BCV-800 | φ760 | 0.42 | 1-5 | 0.55 |
| BCV-1000 | φ930 | 0.64 | 1-5 | 1.1 |
| BCV-1200 | φ1130 | 0.95 | 1-5 | 1.1 |
| BCV-1500 | φ1430 | 1.61 | 1-5 | 1.5 |
| BCV-1800 | φ1730 | 2.35 | 1-5 | 2.2 |
| BCV-2000 | φ1920 | 2.9 | 1-5 | 2.2 |

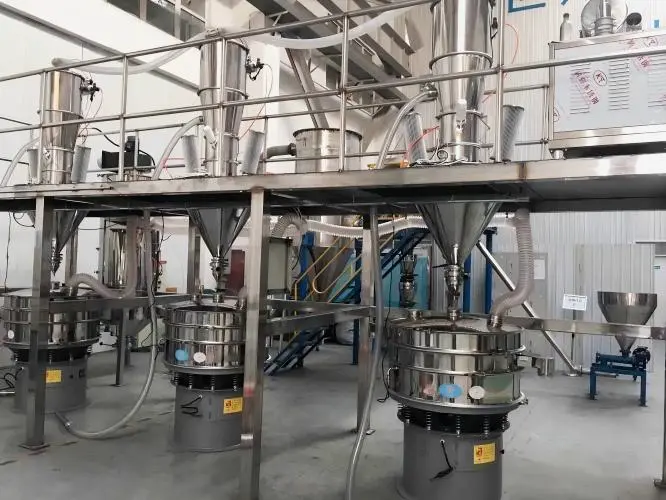

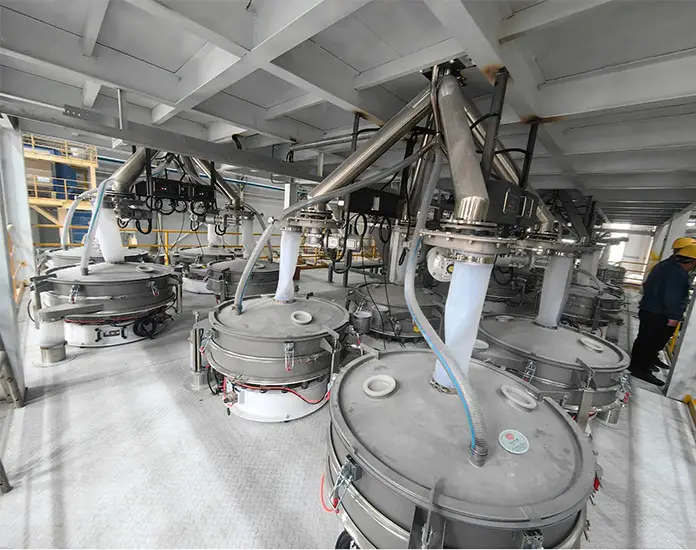

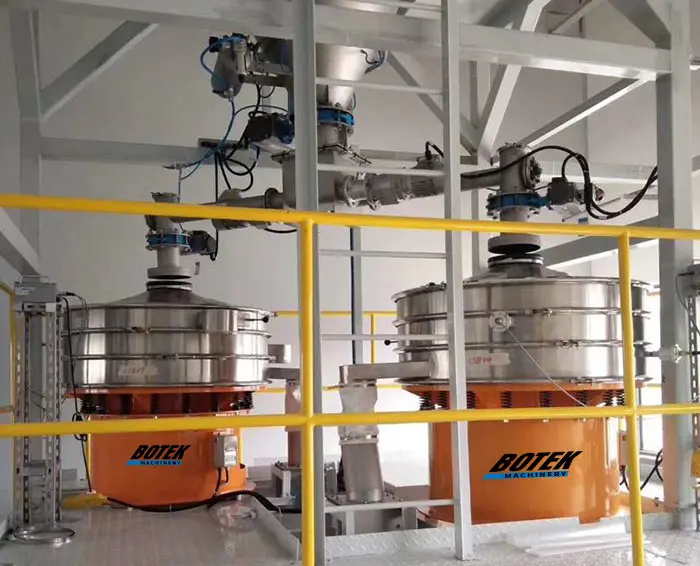

Configuration and application of the Circular Vibrating Screen

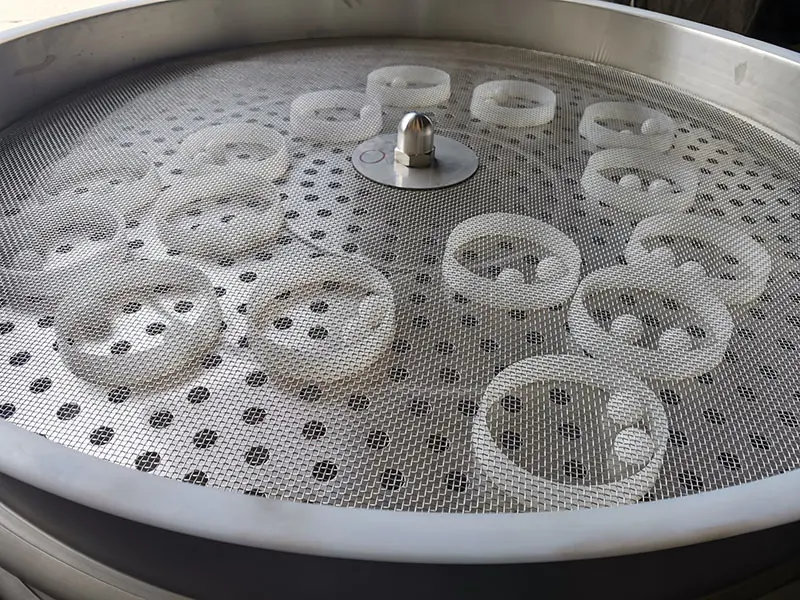

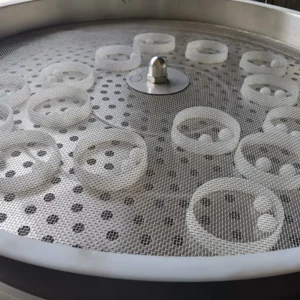

Circular Vibrating Screen With Bouncing Balls System
Explosion-proof type Circular sieving machine

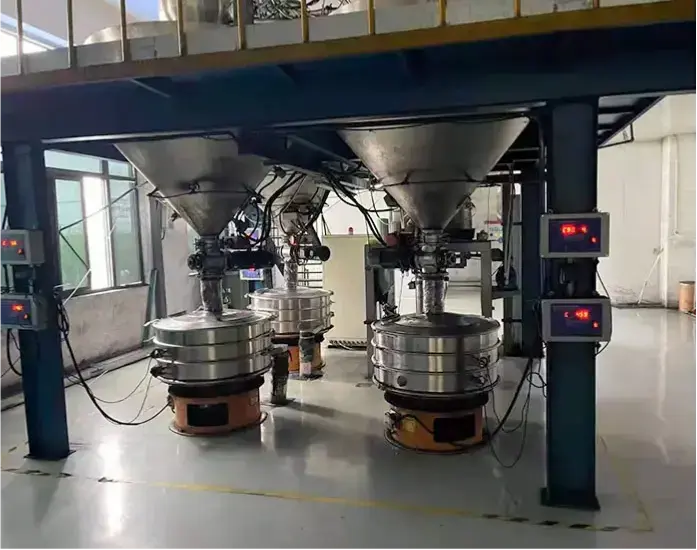

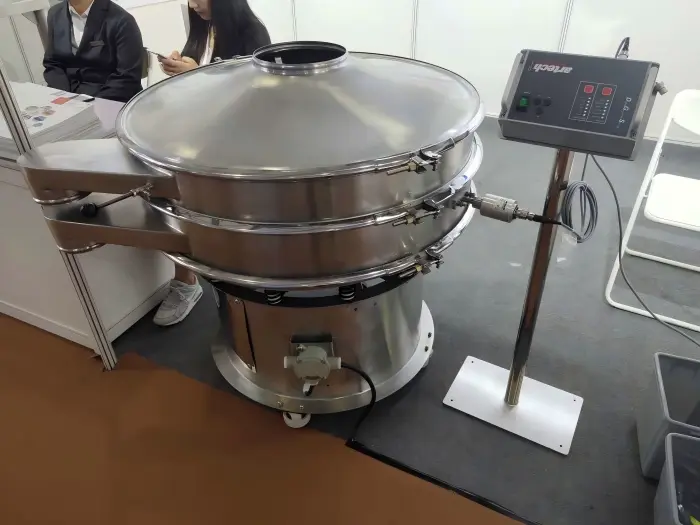

Food Grade Round Vibration Screen With Ultrasonic System
Circular Vibrating Screen With Hopper
Beyond the Circular Vibrating Screen, do you need other equipment?
FAQS
They are widely used in mining, aggregates, quarrying, recycling, chemical, food, and pharmaceutical industries for grading, sizing, scalping, dedusting, and washing of materials such as crushed stone, sand, coal, ores, grains, and powders.
Selection depends on material characteristics (size, moisture, abrasiveness), capacity requirements, and screening goals (e.g., single or multi-deck classification). We provide customized solutions based on your specific process data.
Anti-blocking devices (such as ball trays, brush cleaners, or ultrasonic systems) are available as optional accessories, and regular maintenance and cleaning are also essential.
Yes. Customizations include size (single or multi-deck), material of construction (carbon steel, stainless steel, abrasion-resistant liners), drive type (direct drive, belt drive), and features like dust covers, feed boxes, and under-pan collection systems.
Standard models are delivered within 5-10 business days. We provide installation guidance, operation training, a 12-month warranty, and lifelong technical support, along with genuine spare parts. Our engineers will respond to any inquiries within 24 hours.
