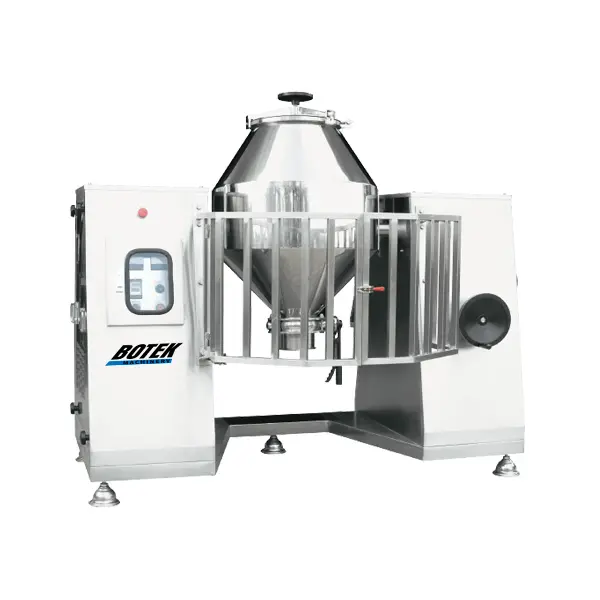

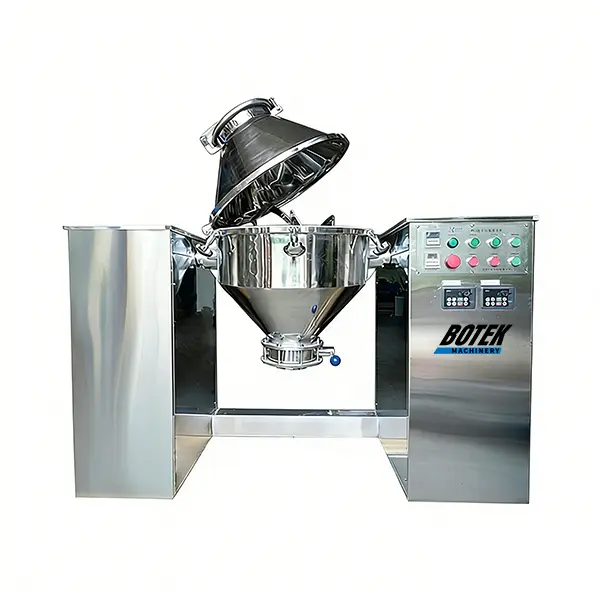

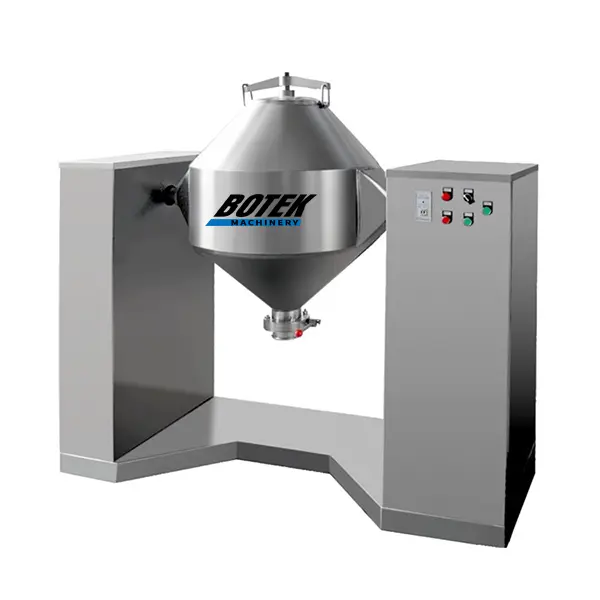

Botek machinery’s Double Cone Mixer features a unique double-cone design that achieves ideal mixing results through three-dimensional rotary motion under gentle conditions. Particularly suitable for materials requiring high particle integrity, fragility prevention, and delamination avoidance. It is the preferred equipment for high-quality mixing in pharmaceutical, food, and chemical industries.
During operation, the Double Cone Mixer’s cylinder performs three-dimensional rotary motion driven by the main shaft. Materials inside the cylinder continuously tumble, convect, and diffuse with the cylinder’s rotation, creating complex compound motion trajectories. This movement achieves highly uniform mixing in a short time, especially suitable for materials with good fluidity and similar densities.
Options
- Material Selection: 304/316L stainless steel, mirror-polished interior
- Process Features: Vacuum drying function, heating/cooling jacket
- Control Systems: PLC automatic control, variable frequency speed regulation
- Safety Configurations: Explosion-proof motors, safety interlock devices
- Discharge Methods: Manual butterfly valves, pneumatic butterfly valves, ball valves
Data Sheet
| Model | Total Volume (L) | Load Factor | Power (kw) | Dimensions (L×W×H)(mm) | Weight (Kg) |
| BDC-50 | 50 | 40%-60% | 0.75 | 1350×500×1100 | 380 |
| BDC-100 | 100 | 40%-60% | 1.1 | 1580×650×1350 | 550 |
| BDC-200 | 200 | 40%-60% | 1.5 | 1800×750×1650 | 680 |
| BDC -300 | 300 | 40%-60% | 2.2 | 2050×850×1850 | 800 |
| BDC -500 | 500 | 40%-60% | 3 | 2400×1050×2100 | 1200 |
| BDC -1000 | 1000 | 40%-60% | 4 | 2800×1500×2500 | 1800 |
| BDC -2000 | 2000 | 40%-60% | 5.5 | 3400×1600×2700 | 2100 |
| BDC -3000 | 3000 | 40%-60% | 7.5 | 3500×1680×2900 | 2400 |
| BDC -5000 | 5000 | 40%-60% | 11 | 3900×1900×3300 | 2800 |
Noted:Show selected models only
Configuration and application of the Double Cone Blender

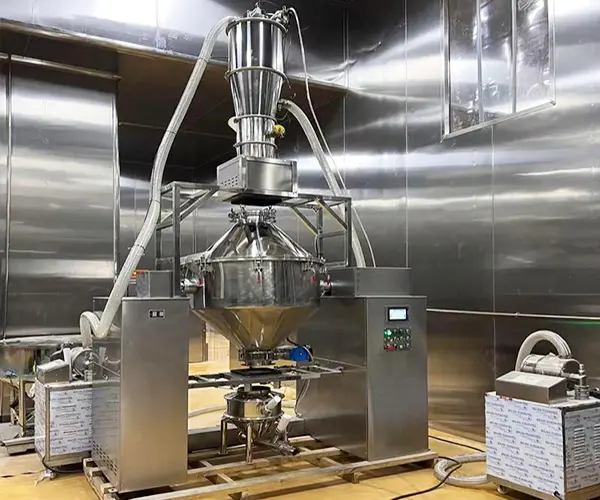

Double Cone Blender With Vacuum Conveyor
Food Grade Double Cone Blender with 316L Stainless Steel
Explosion-proof Double Cone Blender With PLC System

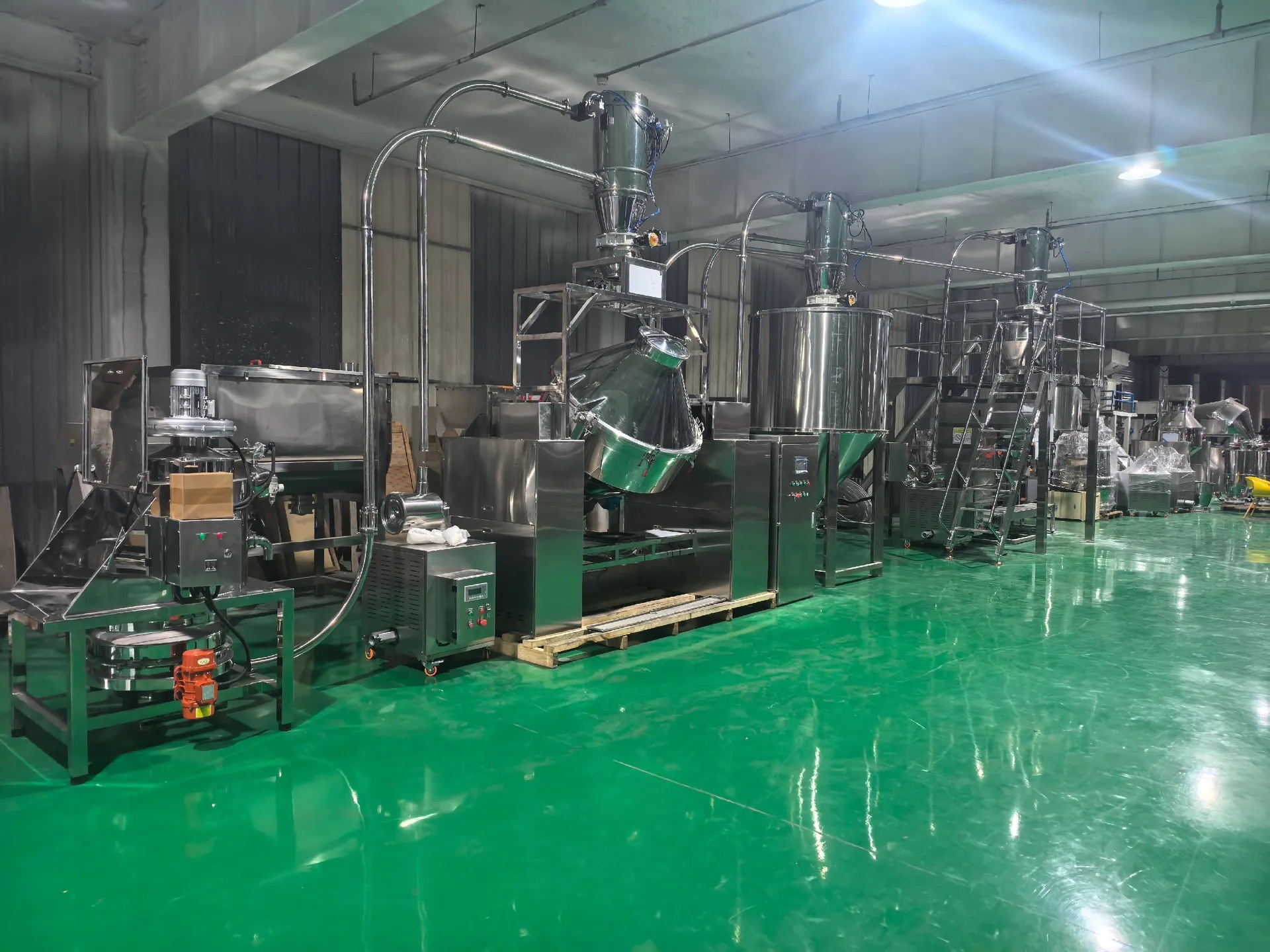

Integrated Unpacking, Mixing, Conveying,and Packaging Line
Beyond the Double Cone Blender, do you need other equipment?
FAQS
The double cone blender is ideal for gentle, homogeneous blending of dry, free-flowing powders and granules with similar densities and particle sizes. It excels in industries requiring high mix uniformity without particle degradation, such as pharmaceuticals (APIs, excipients), food (spices, drink mixes), and fine chemicals.
Material of Construction: SS304, SS316L, with optional interior polishing (Ra ≤0.4µm) or coating.
Safety & Process Features: CIP/SIP systems, explosion-proof motors, heating/cooling jackets, vacuum operation for drying or degassing.
Discharge Options: Manual or pneumatic valves, flush-bottom valves, dust-tight designs.
Automation: PLC control with recipe management, load cells for weighing, data recording.
The simple interior allows for easy cleaning. Options include easy-open covers, spray ball systems for CIP, and quick-release parts. Bearings are typically external, reducing contamination risk. Maintenance mainly involves checking seals and drive components periodically.
Yes. We can integrate the double cone blender with feeding systems (silos, conveyors), pre-blending sieves, and post-blending packaging lines for a fully automated turnkey blending and packaging system.
